OvrC: OvrC is your remote on-call technician, a free cloud-control app that makes installs a breeze and helps eliminate truck rolls. Specific OvrC features include the ability to reboot, update firmware, link to the local user interface, see offline/online status, and set network settings. Plus, a convenient end-user app allows your customers to fix small problems on their own, reducing calls and making your life easier.

Full 4K HDR Content: This Binary matrix switcher transmits 4K@60Hz 4:4:4 video over HDMI, allowing it to distribute the latest HDR content available from streaming services like iTunes, Amazon Prime, Netflix, Hulu, Ultra HD Blu-ray, and more.

IP, IR & RS-232 Control with Drivers Available: The B-660-MTRX-4×4 matrix switch is Control4® certified with SDDP built-in for faster programming. To control the matrix itself, Ethernet, bi-directional RS-232, and IR are all available, and drivers are provided for the most popular control system platforms.

Analog Audio Breakouts: Analog audio for each output is included for 2-channel PCM audio and is de-embedded from each HDMI output, allowing for independently distributed audio that gives your customers total control throughout their home or office. Plus, it supports high-resolution audio formats including Dolby® True HD, Dolby® Digital Plus, DTS™-HD Master, and LPCM audio formats.

Built-In ESD and Surge Protection, Thermal Reliability: Intelligent circuit design, perfected through extensive hardware testing, has resulted in a robust product with excellent ESD and surge protection that exceeds CE Level 3 standards. During development, every connection was tortured with an ESD gun and a lightning simulator. They were hit with ESD at 15KV and surges up to 1600V. More importantly, though, they each lived to tell about it!

Ideal for Professional Environments: Whether delivering content from a laptop in a boardroom or extending graphics in a command-and-control environment, the B-660-MTRX-4×4 has you covered with bi-directional RS-232 control and its ability to deliver video formats up to 4K60Hz to accommodate the latest graphic requirements.

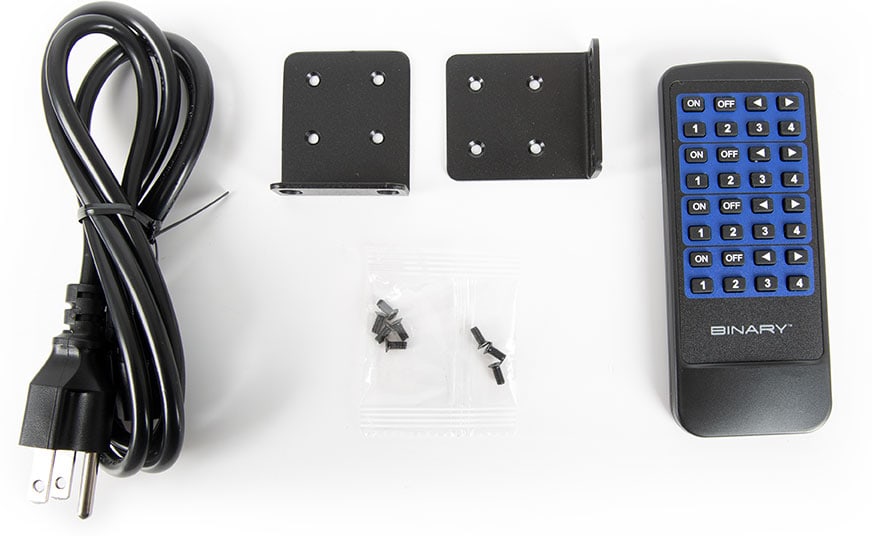

Package Contents:

• (1) B-660-MTRX-4×4 Matrix
• (1) AC Power Cord with US Pins
• (1) IR Remote
• (2) Mounting Brackets (with Screws)
• (1) Installation Manual
